GaN 기반의 자외선 센서를 생산하는 국내 유일의 업체

  • PRODUCT
  • 자외선 감지기
Image Type Series Name Part Number Dimensions(mm) Spec.Sheet Application note Manual

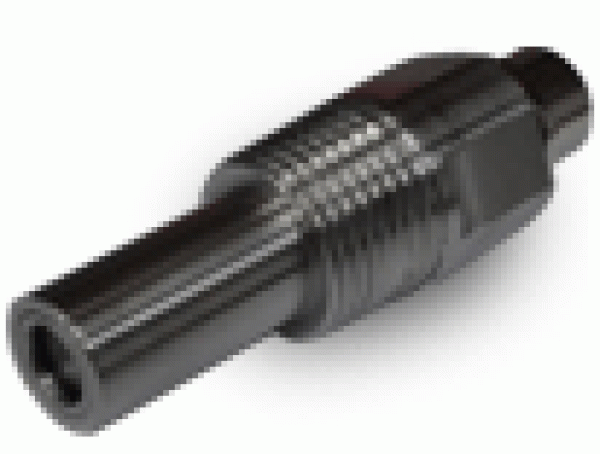

product Proximity to UV (Current output) LW8.2 GUVx-T1xGC-I4LW8.2 NPT1/2" / 12 mm

Down

-

Down

제품 설명

UV wavelength information -UV-V : 230~395nm (Peak 360nm)
-UV-A : 230~370nm (Peak 360nm)
-UV-B : 220~320nm (Peak 305nm)
-UV-C : 220~280nm (Peak 265nm)
-Visible Blue(VBL) : 300~470nm (Peak 405nm)
-Visible Green(VGR) : 300~510nm (Peak 385nm)

Features

  - AlGaInN-based UV Sensor
  - Thread : NPT 1/2"
  - Window : Quartz Glass
  - Case Material : SUS 316-L(1.4404)
  - Water Resistance : 10 bar
  - Cable Length : 5 m (Standard)

  - UV Water Treatment
  - UV Disinfection Water Treatment

Applications

  - UV water sterilization
  - UV lamp/UV LED monitoring
  - UV Water Treatment
  - UV Disinfection Water Treatment

Specifications

 - Power Supply
  - DC 9~24 V
  - Output
  - DC 4 ~ 20 mA
  - Operating Temperature : -30 ~ 85C
  - UV Water Treatment
  - UV Disinfection Water Treatment
