| Image | Type | Series Name | Part Number | Dimensions(mm) | Spec.Sheet | Application note | Manual |
|---|---|---|---|---|---|---|---|
|
General Radiometer | MG-05 | GUVx-T1xGS5-xLAx | 96 x 48 x 112 | - | - |
Down |
|
Current, RS485 Radiometer | MG-02 | GUVx-T1xGS2-xLAx | 96 x 48 x 108 | - | - |
Down |
|
Sensor & Monitor | AC02 | GUVC-T11GS0-AC02 | 60 x 30 x 24 |
Down |
- |
Down |
|

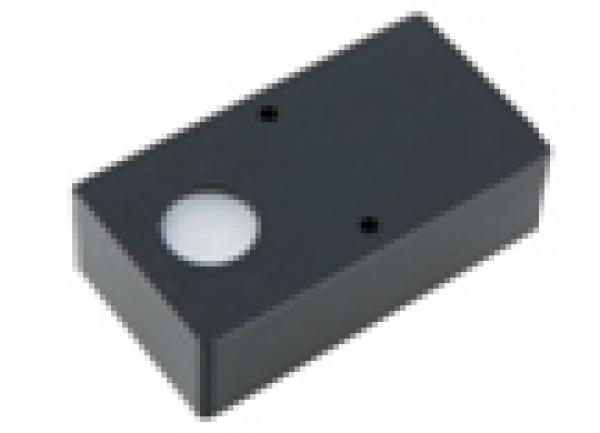

General Molded cable | LA2 | GUVx-T1xGC-LA2 | 55 x 30 x 16 |
Down |
- | - |
|
General Molded cable | LA2 | GUVx-T1xGC-LA2-24 | 55 x 30 x 16 |
Down |
- | - |
|
General Molded cable | LA2 | GUVx-T1xGC-ILA2 | 55 x 30 x 16 |
Down |
- | - |
|

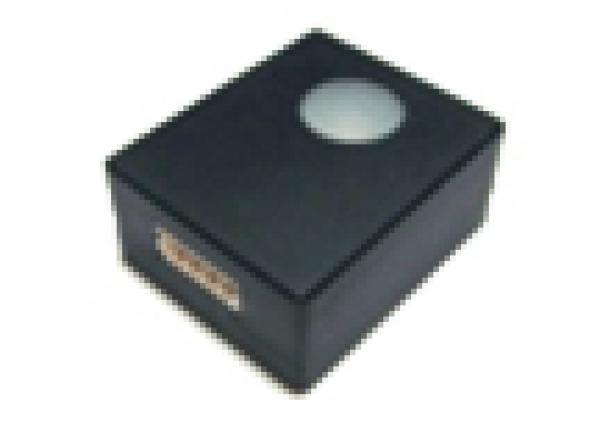

Small size, Detachable- Connector | LA5 | GUVx-T1xGC-LA5 | 36 x 30 x 16 |
Down |
- |
Down |
|
Small size, Detachable- Connector | LA5 | GUVx-T1xGC-LA5-24 | 36 x 30 x 16 |
Down |
- |
Down |
|
Small size, Detachable- Connector | LA5 | GUVx-T1xGC-ILA5 | 36 x 30 x 16 |
Down |
- |
Down |
|

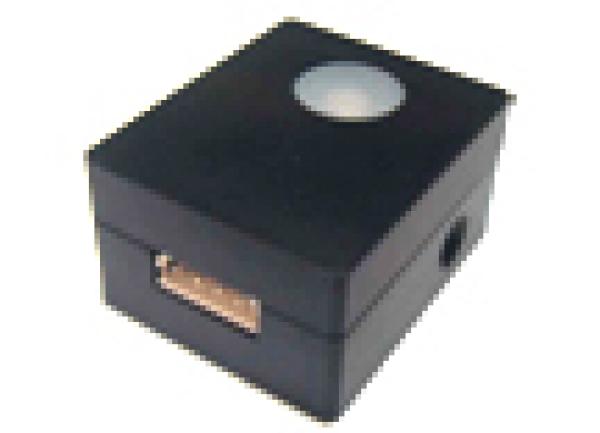

Adjustable Detection Range (Variable Resistor) | LA6 | GUVx-T1xGC-LA6 | 36 x 30 x 19 |
Down |
- |
Down |
|
Adjustable Detection Range (Variable Resistor) | LA6 | GUVx-T1xGC-LA6-24 | 36 x 30 x 19 |
Down |
- |
Down |
|
Adjustable Detection Range (Variable Resistor) | LA6 | GUVx-T1xGC-ILA6 | 36 x 30 x 19 |
Down |
- |
Down |
|

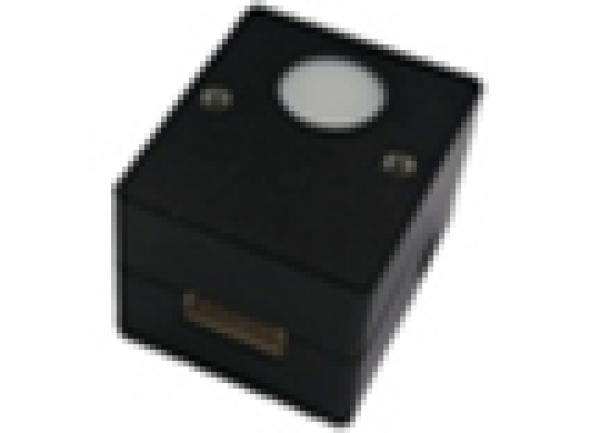

High Intensity (~20W) | LA8 | GUVx-T1xGC-LA8 | 36 x 30 x 21 |
Down |
- |
Down |
|
High Intensity (~20W) | LA8 | GUVx-T1xGC-LA8-24 | 36 x 30 x 21 |
Down |
- |
Down |
|
High Intensity (~20W) | LA8 | GUVx-T1xGC-ILA8 | 36 x 30 x 21 |
Down |
- |
Down |
|
Waterproof, IP65 | LP | GUVx-T1xGC-LP | Ø39, H25.5 |
Down |
- |
Down |
제품 설명
UV wavelength information
- UV-V : 230~395nm (Peak 360nm)
- UV-A : 230~370nm (Peak 360nm)
- UV-B : 220~320nm (Peak 305nm)
- UV-C : 220~280nm (Peak 265nm)
- Visible Blue(VBL) : 300~470nm (Peak 405nm)
- Visible Green(VGR) : 300~510nm (Peak 385nm)
- Features
-
- InAIGaN-based UV sensor
- Quartz window
- Teflon diffuser (option)
- Case material : Aluminum
- Cable length : 5m(standard), customized available
- Ultra Violet Air Purification, UV Curing
- Applications
-
- UV curing
- UV spectroscopy
- UV air purification
- UV lamp/UV LED monitoring
- Ultra Violet Air Purification
- Specifications
-
- Power Supply : DC 5V or DC 9 ~ 24V
- Output : DC voltage 0 ~ 5 V
- Operation Temperature : -30 ~ 85℃
- Ultra Violet Air Purification, UV Curing
