GaN 기반의 자외선 센서를 생산하는 국내 유일의 업체

home
PRODUCT
자외선센서 부품
UV-V 센서 (~395nm)

Image	Package Type	Part Number	Chip Size	Spec.Sheet
Image	Package Type	Part Number	Chip Size	Spec.Sheet

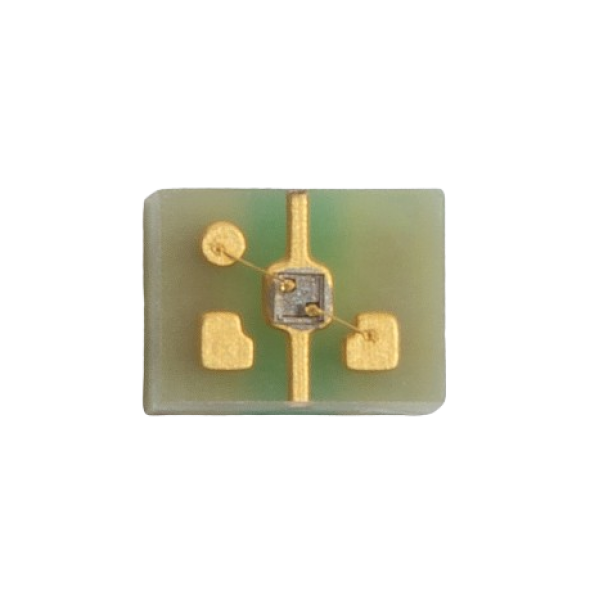

	COB 2418 PKG	GUVV-C20SD	0.4x0.4 mm²	Down

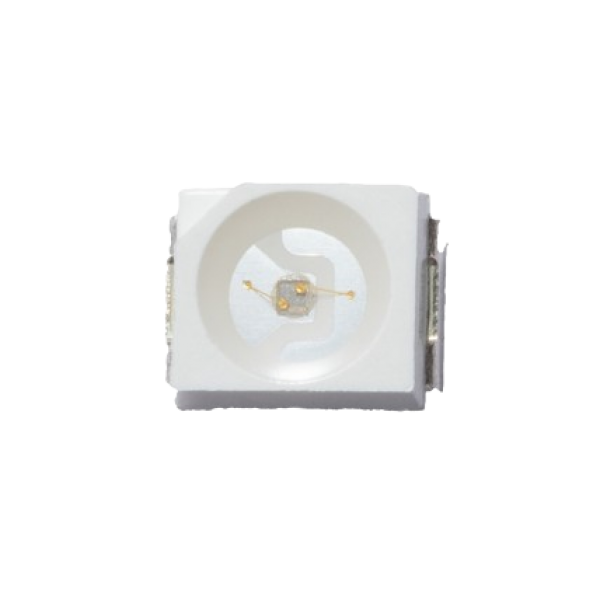

	SMD 3528 PKG	GUVV-S10SD	0.4x0.4 mm²	Down

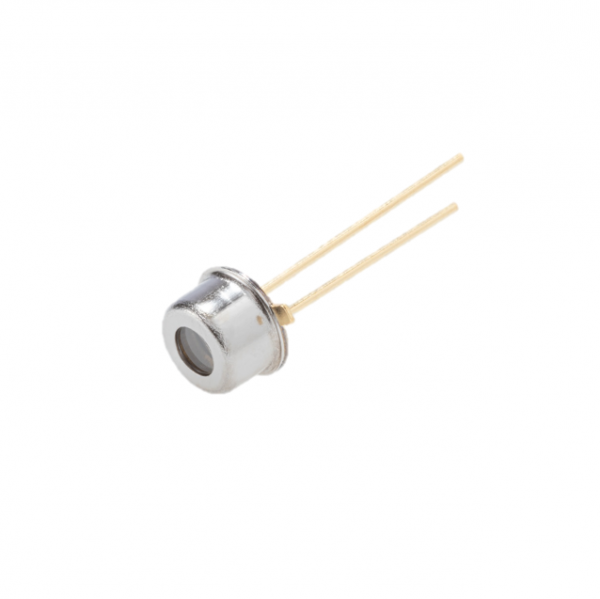

	TO 46 PKG	GUVV-T10GD	0.4x0.4 mm²	Down
	TO 46 PKG	GUVV-T13GD-L	1.14x1.14 mm²	Down

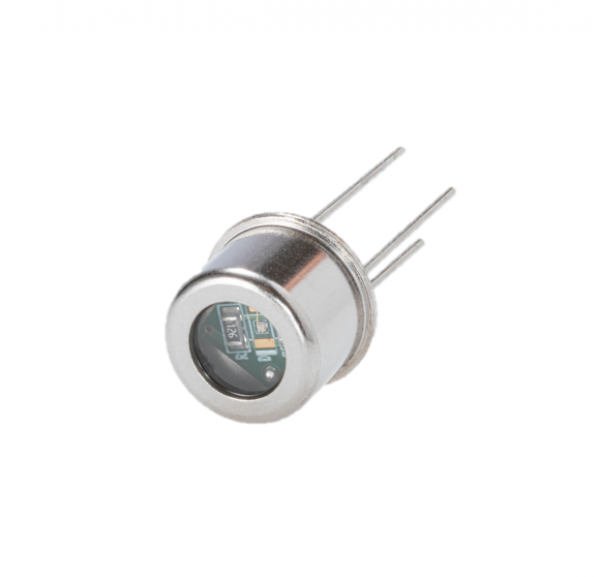

	TO 5 PKG	GUVV-T21GH	0.4x0.4 mm²	Down

제품 설명

UVV Sensor : Sensor component to detect UV region(~395nm)

Features

- Indium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- High Responsivity & Low Dark Current

- Ultraviolet Sensor

Applications

- Full UV Band Monitoring
- UV-A Lamp Monitoring
- Sterilization Lamp Monitoring

- Ultraviolet Sensor
